PH Tool Phased Array Type A Block

PH Tool Phased Array Type A Block

Used during the initial setup and calibration of a phased array unit. This block can be used to perform beam angle verification, calibration for wedge delay, sensitivity calibration, DAC/TCG calibration and much more. Please specify desired measuring units: Imperial or Metric. Standard materials available: Aluminum (7075), Stainless (304), Steel (1018). Special materials also available: Aluminum (2024, 6061, 7050), Brass, Copper, Cupro-Nickel, Hastelloy (C or X), Inconel (600 or 625), Monel 400, Stainless (316 or 321), Steel 4340, Titanium, Titanium 6/4 and Zirconium.

• QXX-6001: Phased Array, type A block, steel 1018, with certificate.

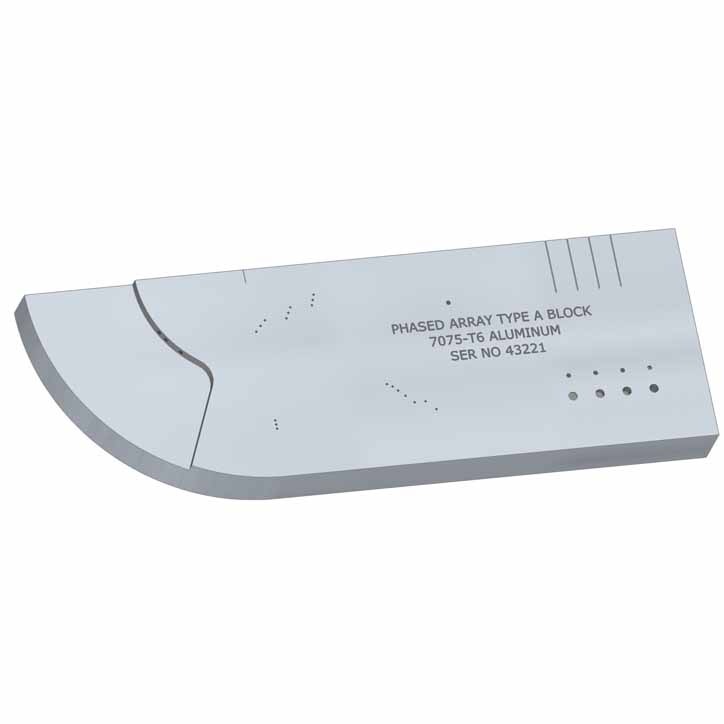

• QXX-6001A: Phased Array, type A block, 7075-T6 aluminum 1018, with certificate.
• QXX-6003: Phased Array, type A block, 304 stainless, with certificate.

Case:

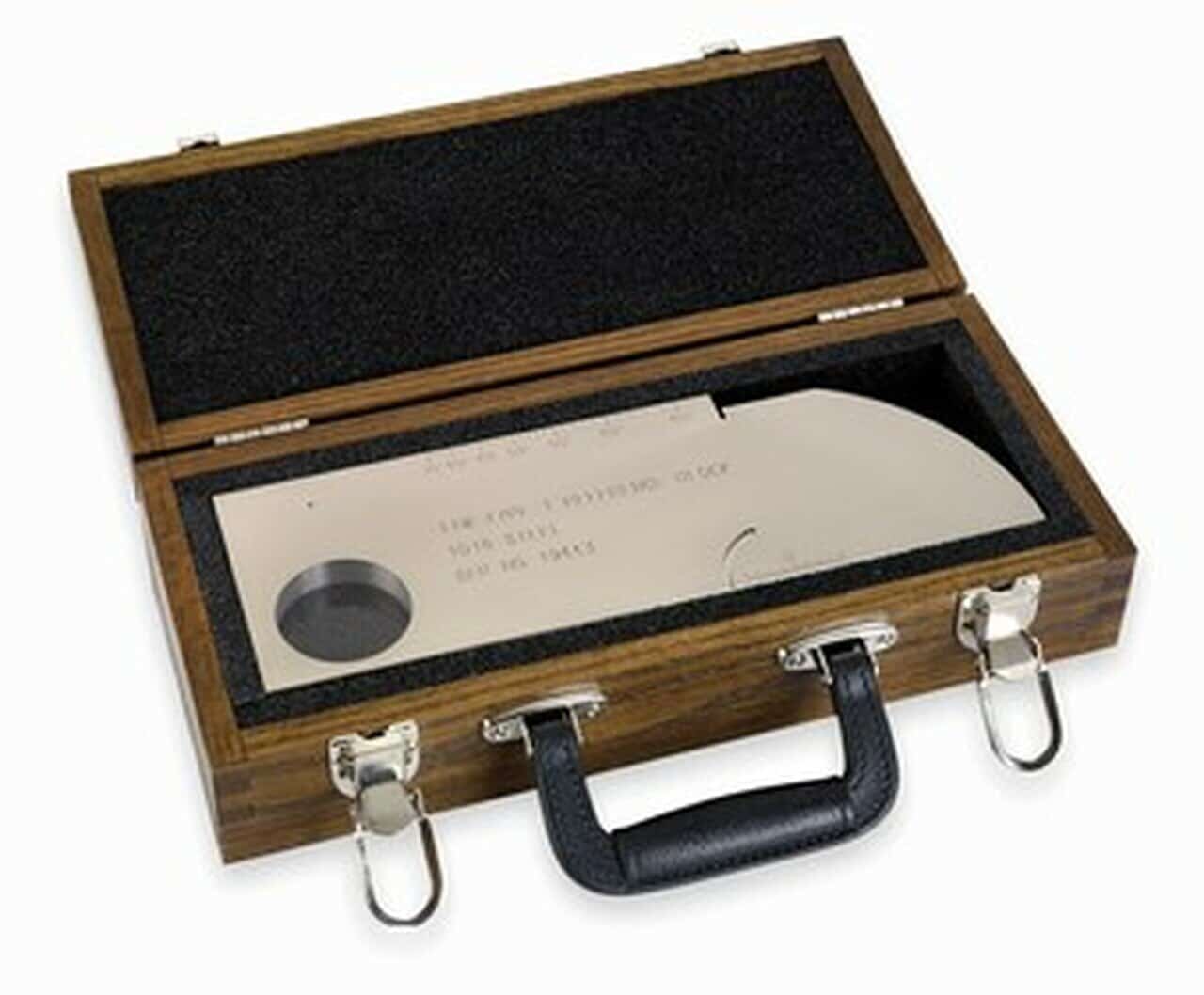

• HC-PH: Standard hardwood case for phased array blocks.
