Yateks N-Series Articulated Digital Videoscope

Yateks N-Series Articulated Digital Videoscope

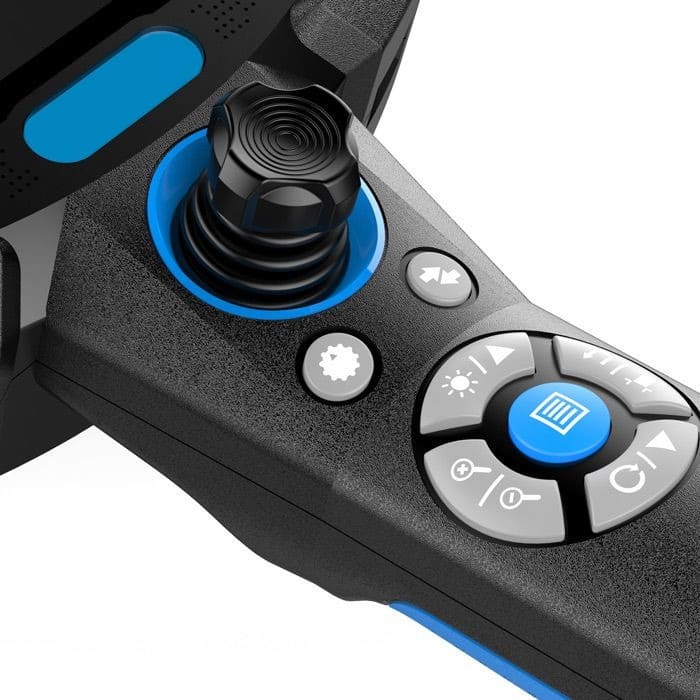

The N-Series articulated digital videoscope is a high resolution, articulated flexible inspection camera. The electric joystick allows smooth bending up to 180° over 360°. The 127mm (5") LCD screen has 10 brightness adjustments, 6 color modes as well as automatic/manual white balance.

• The 3.9mm (0.153") videoscopes are available in working length of 1.0, 1.5, 2.0, 3.0 and 5.0m (39", 59", 78", 118" and 196") with a front mounted camera, 110° FOV and adjustable focus distance of 7 to 80mm (0.25" to 3.1").
• The 6.0mm (0.23") videoscopes are available in working length of 1.0, 1.5. 2.0, 3.0, 5.0 and 8.0m (39", 59", 78", 118", 196" and 314") with a front mounted camera, 80° FOV and adjustable focus distance of 7 to 80mm (0.25" to 3.1"). A side mounted camera is also available with 90° FOV and adjustable focus distance of 3 to 30mm.

Complete kit includes N-Series articulated digital videoscope, TF memory card with card reader, power cable for plugged operation, battery charger with Li-ion batteries for portable operation, video conversion wire, mini USB data cable and user manual in a rigid carrying case. Contact us to discuss your application, requirements, available options and/or receive a quote.

• Specs Sheet
