Lorad 3-Legged Tube Stand

Lorad 3-Legged Tube Stand

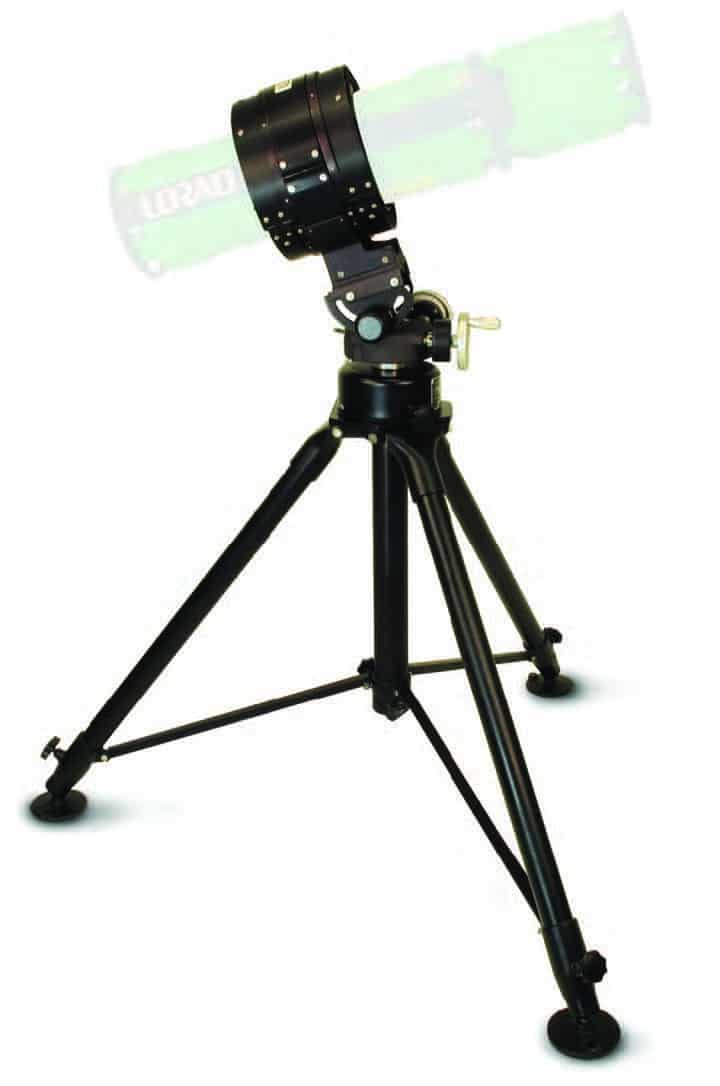

The three-legged tube stand allows 3-Axis positioning of the X-ray tube. Made of anodized aluminum, the height is adjusted (45.5" to 83.5" (115 to 212cm)) via a handwheel, the tube tilt (-45° to 90°) is adjusted via a lockable handwheel and the tube horizontal rotation (360°) is also adjusted via a lockable handwheel. The tube cradle is cushioned for secure mounting and vibration damping.

• LPX1620: Lorad 3-legged tube stand (for Lorad LPX160 and LPX200). NOTE: the stand can be adapted to Comet portable tubes.
• 20046958: Comet 3-legged tube stand (for Comet portable tubes).
• 20074052: Comet 4-legged tube stand (for Comet portable tubes).
